V136-3.45 MW®

V136-3.45 MW® combines advanced aerofoil design with the proven 4 MW nacelle and Large Diameter Steel Tower (LDST) technology, to deliver high and efficient energy production in low- and medium-wind conditions.

V136-3.45 MW® at a glance

V136-3.45 MW® combines advanced aerofoil design with the proven 4 MW nacelle and Large Diameter Steel Tower (LDST) technology, to deliver high and efficient energy production in low- and medium-wind conditions.

The aerofoil design, applied to the 66.7m long blades, enables a 16 percent* increase in annual energy production while at the same time minimising structural loads. Advanced aerodynamics, particularly at the blade tips, and aero add-ons such as Serrated Trailing Edges decrease the maximum noise emission level.

Vestas has 15 years of experience optimising carbon blade application, and the V136-3.45 MW® benefits from advanced use of carbon pultrusions, resulting in light-weight, highly robust blades with optimal performance. The industry leading lightning protection system and highly accelerated lifetime testing ensure high product reliability.

* Compared to V117-3.3 MW™

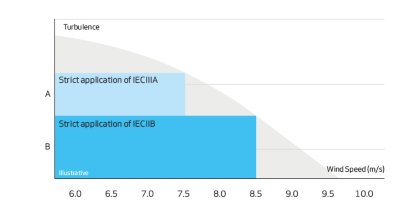

IEC IIB classification

Supported by focused design and optimisation activities, the V136-3.45 MW® is now capable of operating in both IEC IIIA and IEC IIB wind conditions.

With the IEC IIB classification of the V136-3.45 MW®, the turbine is now covering an even broader range of wind and site conditions, where the 136 m rotor enables great wind capture, at medium-wind conditions.

This makes the V136-3.45 MW® turbine a strong performer with the potential to increase AEP by up to 16 %*, contributing to a lower LCoE.

The V136-3.45 MW® as an IEC IIB turbine is already being applied to medium-wind conditions for projects in North America and Asia, giving our customers the possibility of choosing the V136-3.45 MW® turbine’s compelling balance between advanced technology and proven performance.

*Compared to V117-3.3 MW™. Actual figures depend on site-specific conditions.

Options
available for the
V136-3.45 MW™

  • High Wind Operation
  • Power Optimised Mode up to 3.6 MW (site specific)
  • Load Optimised Mode down to 3.0 MW
  • Condition Monitoring System
  • Service Personnel Lift
  • Vestas Ice Detection
  • Low Temperature Operation to -30°C
  • Fire Suppression
  • Vestas Shadow Flicker Control System
  • Vestas Bat Protection System
  • Nacelle Hatch for Air Inlet
  • Aviation Lights
  • Aviation Markings on the Blades
  • Vestas InteliLight™

Technical specifications


POWER REGULATION OPERATIONAL DATA
Pitch regulated with variable speed
Rated power
3,50kW
Cut-in wind speed
3m/s
Cut-out wind speed
22,5m/s
Re cut-in wind speed
20m/s
Wind class
IEC IIIA/IEC IIB
Standard operating temperature range
from -20°C* to +45°C with de-rating above 30°C

SOUND POWER
(Noise modes dependent on site and country)

ROTOR
Rotor diameter
136m
Swept area
14,527 m2
Aerodynamic brake
full blade feathering with 3 pitch cylinders

NACELLE DIMENSIONS
Height for transport
3.4 m
Height installed (incl. CoolerTop®)
6.9 m
Length
12.8 m
Width
4.2 m

ELECTRICAL
Frequency
50/60 Hz
Converter
full scale

GEARBOX
Type
two planetary stages and one helical stage

TOWER
Hub heights
82 m (IEC IIIA), 105 m (IEC IIIA), 112 m (IEC IIIA), 132 m (IEC IIIA/DIBt S), 142 m (IEC IIIA), 149 m (DIBt S) and 166 m (DIBt S)

HUB DIMENSIONS
Max. transport height
3.8m
Max. transport width
3.8m
Max. transport length
5.5m

BLADE DIMENSIONS
Length
66.7m
Max. chord
4.1m
Max. weight per unit for transportation
70 metric tonnes

SUSTAINABILITY METRICS
Carbon Footprint
7.6g CO2e/kWh
Return on energy break-even
7.5 months
Lifetime return on energy
32 times
Recyclability rate
88.5%
Configuration: 132m hub height and wind class IECIIIA. Depending on site-specific conditions. Metrics are based on an externally reviewed Life Cycle Assessment available on vestas.com

4 MW

The Vestas 4 MW platform sets new standards for onshore wind performance within regimes ranging from very strong wind and typhoon conditions to low wind.

IEC IIIA/IEC IIB

The V136-3.45 MW™ IEC IIIA/IEC IIB is designed for low- and medium-wind sites.

+74 GW

The performance and versatility of the 4 MW platform has been proven with more than 74 GW installed in 59 countries since 2010.
